Products Description

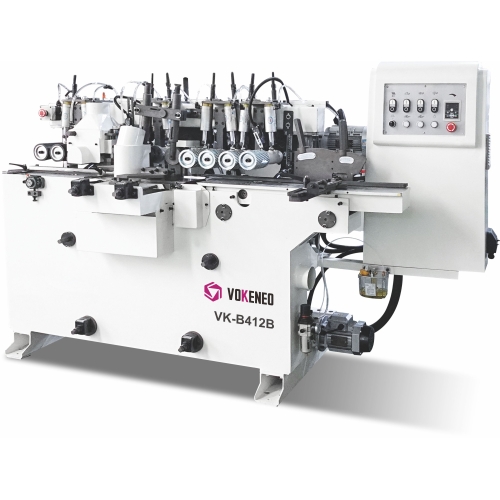

| Spec & models | VK-B412B |
| Working width | 20-120mm |
| Working thickness | 8-60mm |
| Min. Working length | 100mm |
| Blade Diameter | Ф30mm |
| Feeding speed | 6-30m/min |
| Main spindle speed | 6500r/min |
| 1st lower blade diameter | Ф100mm |
| Left/right blade diameter | Ф100mm |
| 1st upper blade diameter | Ф100mm |
| Total motor power | 17.97kw |
| 1st lower blade power | 5.5kw |
| Vertical shaft power | 5.5kw (one tow two) |
| 1st upper blade power | 5.5kw |
| Feeding motor power | 1.5kw |
| Lifting motor power | 0.37kw |
| pneumatic source pressure | 0.6MPa |
| Overall size | 2070x1080x1390mm |
| Weight | 950kg |
