Products Description

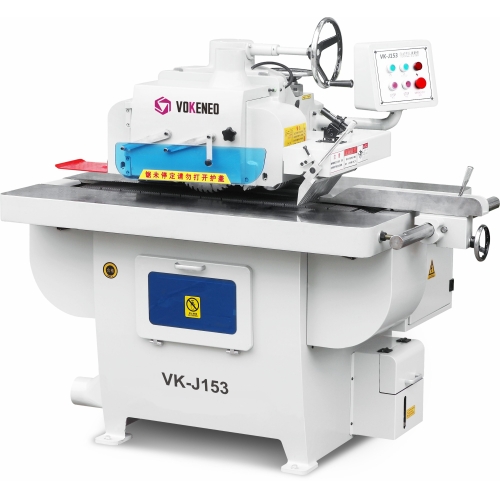

| models | VK-J153D(变频,短料) | VK-J153 |
| Sawing thickness | 10-120mm | 5-85mm |
| Maximum sawing width | 450mm | 360mm |
| Minimum sawing length | 230mm | 320mm |
| Maximum saw blade diameter | Ф355mm | Ф305mm |
| Saw blade inner diameter | Ф25.4mm | Ф25.4mm |
| Saw shaft speed | 3660r/min | 3750r/min |
| main motor power | 11kw | 7.5kw |
| Feed motor power | 1.5kw | 0.75kw |
| Lifting box lifting motor power | 0.25kw | - |
| Total power | 12.75kw | 8.25kw |
| weight | 950kg | 750kg |
| working desk size | 1580x890mm | 1320x945mm |
| Dimensions | 1850x1060x1480mm | 1560x970x1430mm |
| Packing size | 1900x1160x1600mm | 1600x1070x1550mm |
