Products Description

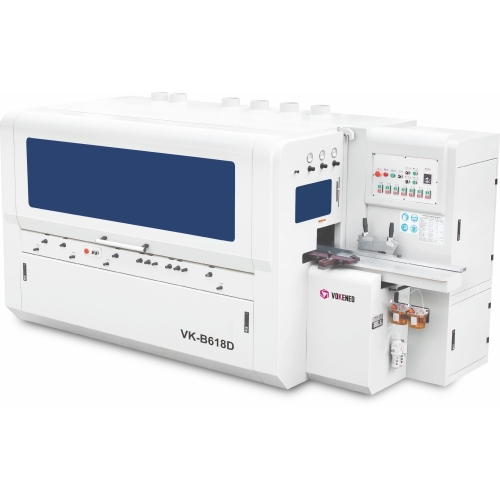

| Spec & models | VK-B618D | VK-B621D |
| Working width | 25-180mm | 25-210mm |
| Working thickness | 8-130mm | 8-130mm |
| Min. Working length | 580/300mm | 580/300mm |
| Blade Diameter | Φ40mm | Φ40mm |
| Feeding speed | 5-40m/min | 5-40m/min |
| Main spindle speed | 7000r/min | 7000r/min |
| Trimming blade diameter | Φ145/Φ150mm | Φ145/Φ150mm |
| 1st lower blade diameter | Φ125mm | Φ125mm |
| Left/right blade diameter | Φ110-Φ160mm | Φ110-Φ160mm |
| 1st upper blade diameter | Φ125-Φ160mm | Φ125-Φ160mm |
| 2nd upper blade diameter | Φ125-Φ160mm | Φ125-Φ160mm |
| 2nd lower blade diameter | Φ125-Φ180mm | Φ125-Φ180mm |
| Total motor power | 38.25KW | 41.75KW |
| 1st lower blade power | 4KW | 5.5KW |
| Left blade power | 5.5KW | 5.5KW |
| Right blade power | 5.5KW | 5.5KW |
| 1st upper blade power | 7.5KW | 7.5KW |
| 2nd upper blade power | 5.5KW | 7.5KW |
| 2nd lower blade power | 5.5KW | 5.5KW |
| Feeding motor power | 4KW | 4KW |
| Lifting motor power | 0.75KW | 0.75KW |
| pneumatic source pressure | 0.6Mpa | 0.6Mpa |
| Dust outlet diameter | 6 * Φ150mm | 6 * Φ150mm |
| Overall size | 3770*1650*1900mm | 3770*1750*1900mm |
| Weight | 3400kg | 3700kg |
