Products Description

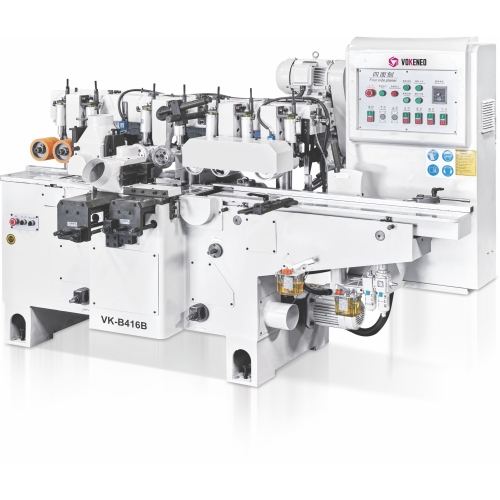

| Spec & models | VK-B416B | VK-B516BX |
| Working width | 25-160mm | 25-160mm |
| Working thickness | 8-100mm | 8-100mm |
| Working table length | 580/300mm | 580/300mm |
| Blade Diameter | Φ40mm | Φ40mm |
| Feeding speed | 5-36m/min | 5-36m/min |
| Main spindle speed | 6000r/min | 6000r/min |
| Trimming blade diameter | Φ120mm | Φ120mm |
| 1st lower blade diameter | Φ100mm | Φ100mm |
| Left/right blade diameter | Φ100-Φ120mm | Φ100-Φ120mm |
| 1st upper blade diameter | Φ100-Φ120mm | Φ100-Φ120mm |
| 2nd upper blade diameter | - | - |
| 2nd lower blade diameter | - | Φ100-Φ120mm |
| Total motor power | 15.95KW | 18.95KW |
| 1st lower blade power | 3KW | 3KW |
| Left blade power | 3KW | 3KW |
| Right blade power | 3KW | 3KW |
| 1st upper blade power | 4KW | 4KW |
| 2nd upper blade power | - | - |
| 2nd lower blade power | - | 3KW |
| Feeding motor power | 2.2KW | 2.2KW |
| Lifting motor power | 0.75KW | 0.75KW |
| pneumatic source pressure | 0.6Mpa | 0.6Mpa |
