Products Description

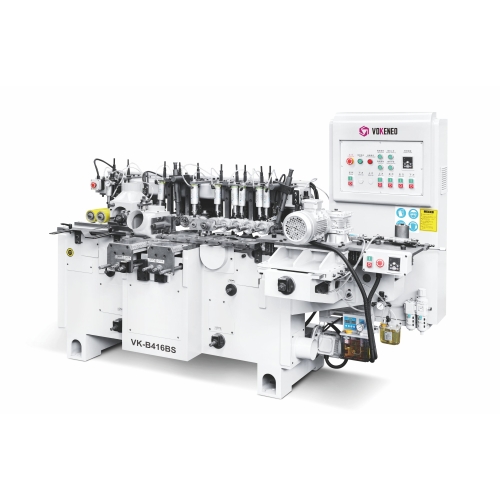

| Spec & models | VK-B416BS |
| Working width | 25-160mm |
| Working thickness | 20-100mm |
| Working table length | 250/100mm |
| Blade Diameter | Φ40mm |
| Feeding speed | 5-36m |
| Main spindle speed | 7000r/min |
| Trimming blade diameter | Φ110mm |
| 1st lower blade diameter | Φ100mm |
| Left/right blade diameter | Φ100mm |
| 1st upper blade diameter | Φ100mm |
| Total motor power | 15.75KW |
| 1st lower blade power | 3KW |
| Left blade power | 3KW |
| Right blade power | 3KW |
| 1st upper blade power | 4KW |
| 1nd lower blade power | / |
| Feeding motor power | 2.2KW |
| Lifting motor power | 0.55KW |
| pneumatic source pressure | 0.6Mpa |
| Overall size | 2540*1550*1615mm |
| Weight | 2500kg |
